PAC

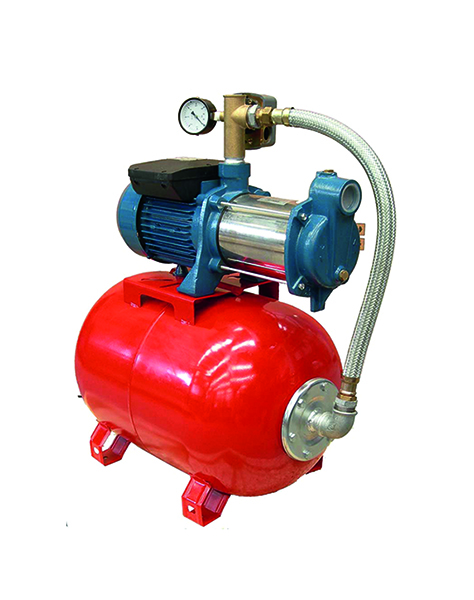

Assembly: Monobloc electrical pump + Operating kit

Single-phase or three-phase with collector version:

• 24l -8 bar (KIT-PAC-25) Membrane collector.
• 5 way connection

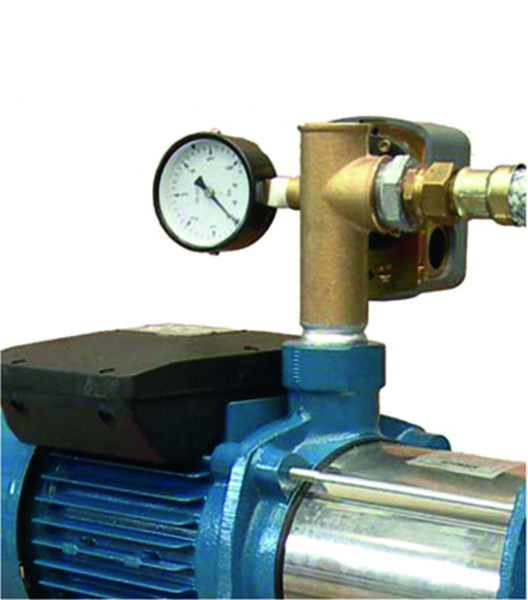

• Pressure switch. According to model. FSG-2 (between 0,5 and 5 bar) or FYG-22 (between 2,8 and 7 bar)
• Pressure gauge. 0-6 or 0-10 bar according to pressure switch.

Single phase or three phase pumps with horizontal cylindrical collector version:

• 20l -10 bar (KIT-PAC-20H) or 50l – 10bar (KIT-PAC-50H) Membrane collector.
• 5 way connection
• Pressure switch. According to model. FSG-2 (between 0,5 and 5 bar) or FYG-22 (between 2,8 and 7 bar)

• Pressure gauge. 0-6 or 0-10 bar according to pressure switch.

Single phase pump with pressure regulator version:

Electrical pressure regulator type F2 or F3 or F4 ( KIT-PAC F2 or KIT -PAC- F3 or KIT-PAC- F4)
